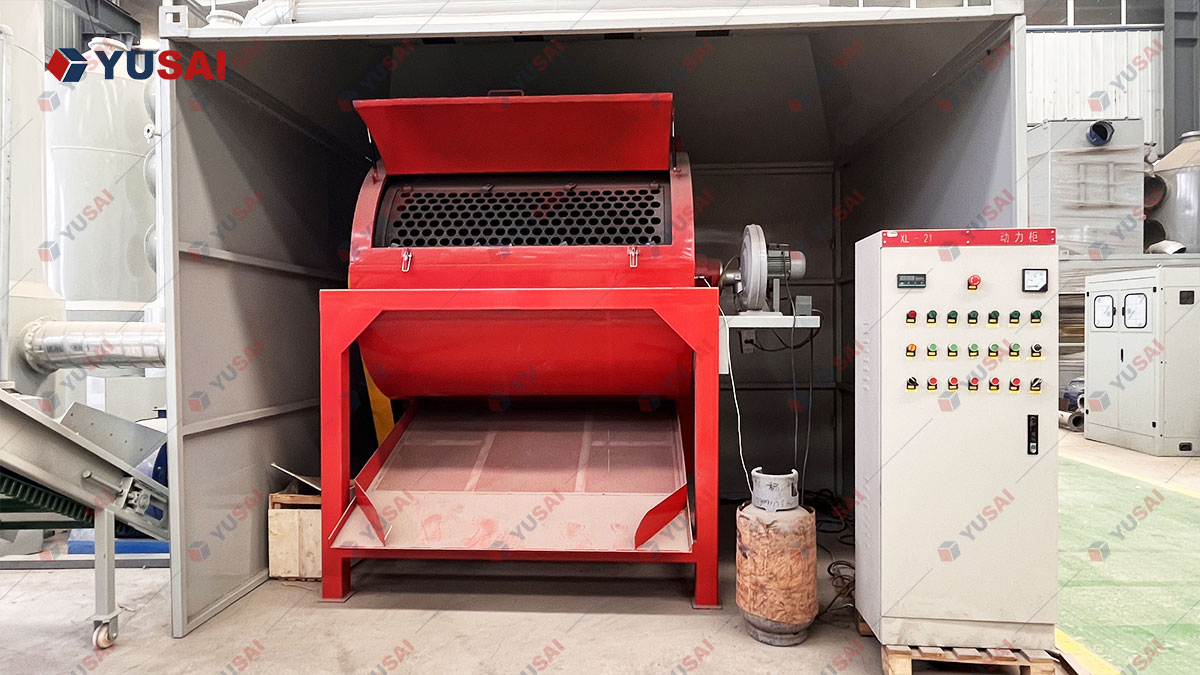

PCB Dismantling Machine
Raw Materials: Applicable to all types of scrap circuit boards, including waste computer motherboards, mobile phone PCBs, home appliance circuit boards, automotive motherboard,and printed circuit boards (PCBs).
Final Products: Mother boards,Electronic components,Tin
Main Part: Control cabinets, Dismantling Machine, dust removal equipment, and waste gas treatment equipment,electronic components screen and magnetic machine.
Product Description
PCB disassembly machines are used to remove electronic components from different PCB boards. The solder on the PCB board is melted by heating, and then the PCB motherboard and electronic components are separated using rolling friction. Gold-containing electronic components can be directly processed by a gold stripping machine to extract gold (99.99% purity). The PCB motherboard is then processed by a PCB recycling machine to separate precious metal powder and resin powder for subsequent copper electrolysis and precious metal refining.
Applicable Raw Materials
Applicable to all types of scrap circuit boards, including waste computer motherboards, mobile phone PCBs, home appliance circuit boards,automotive motherboard,printed circuit boards (PCBs).
Final Products
Working Process
PCB dismantling machine is used to remove electronic components on different PCB boards.Through heating, the Tin on PCB boards is melt then PCB mother board and electronic components are separated. Through rolling friction, they are separated from each other thoroughly. During the process, the exhaust gas is absorbed by activated carbon firstly for treating formaldehyde. Then water spraying makes the exhaust gas sedimentate. At last, we use a filter to deal with the exhaust gas. After the three-level treatment, there is no pollution to the environment.
Machine Features
1. Fully Automated: Labor-saving design, requires only 2 operators.
2. One-Step Process: Simultaneous desoldering and component dismantling.
3. Smart Heating: Automatic temperature control via proprietary system.
4. High Throughput: Scalable capacities of 200 / 300 / 500 kg/h.
5. Safe & Easy: User-friendly interface with built-in safety features.
6. Zero Metal Loss: Minimizes component damage to protect precious metals.
7. Maximized Returns: Separate downstream recycling for boards and components.
8. Eco-Friendly: Integrated waste gas system for smoke-free emissions.
Machine Features
| Model | YS-CCJ-300 | YS-CCJ-500 |
| Capacity | 200-300kg/h | 400-500kg/h |
| Power | 5kw | 7.7kw |
| Dimension | 1.8*1.5*1.6/m | 2.3*1.8*1.8/m |
